Pierlite- Light Fittings
Australian Made Pierlite lighting
Pierlite began manufacturing lighting in the 1930’s. The Gerard family has journeyed through an exciting path in the electrical industry. At present Gerard Lighting’s flag ship brand Pierlite has positioned itself as a market leader in Australasia for design, manufacturing and distribution of architectural, industrial – commercial lighting systems and through this experience create an even more exciting path as it develops a dynamic global network.
We have previously used the Pierlite products on our previous projects. Some of the products we use from the Pierlite sporting range are:

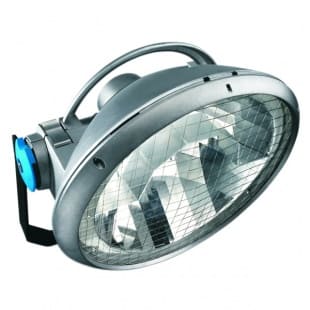

Pierlite – Arena Vision MVF404
Features:
- MVF404 offers all the features of the MVF403 plus the advantage of the Philips MHN-SE 2KW/956
- Pressure die-cast aluminium housing and rear access cover with safety electrical cut-off switch
- Durable powder coat paint finish plus galvanised and painted mounting bracket
- Specular anodised, high purity aluminium one piece reflector with toughened glass cover for downlighting versions
- Special high temperature ceramic glass cover for uplighting versions
- Wire safety mesh combined with the glass covers
- Stainless steel clips and exposed fasteners
- Compact size allows for close grouping on mast head frames
Application:
Outdoor stadiums & indoor sports halls, Racing tracks and associated marshalling areas, Architectural, floodlighting of buildings and civic structures
A proven performer and the benchmark in sports lighting; the MVF404 for optimum control and efficiency.

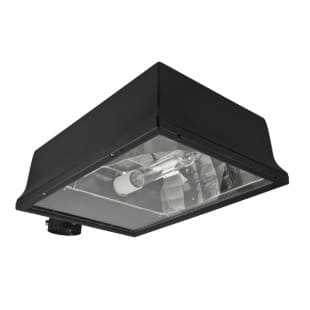

Pierlite – Domain M
Features:
- Housing and frame are pressure die-cast aluminium alloy with black RAL 9005, powder coat paint finish 4mm tempered clear glass which is thermal and shock resistant in a hinged frame with IP 65 seal Integral control gear with power supply cable on a removable tray for ease of installation and maintenance
- Choice of three reflector distributions in a Type 6, full cut-off luminaire
- Optional sliding shutter to control rearward light spill
- Unique pole mount adaptor system for dia. 60mm x 110 long spigots or direct fix to 90mm square pole
- Multiple fixture configurations and wall mount adaptor plate option
- Quality porcelain E40 lamp holder
Application:
Ideal for car parks, driveways, community gardens and small tennis courts in residential areas.
Type 6, area floodlight designed with full cut-off optics, controlling obtrusive light.
Pierlite – Forum
Features:
- Pressure die-cast aluminium housing with cooling fins and graphite coloured, durable powder coat paint finish Specular anodised, high purity aluminium reflectors with internal louvre for beam and glare control
- Tempered 5mm glass cover for downlighting versions and special high temperature ceramic glass cover for uplighting versions
- Rear opening lamp cover with electrical safety cut-off switch and stainless steel clips for tool free access
- The compact size allows for close over and under grouping on mast head frames or spars
- Lamps and gear options to be ordered separately
- Integrated power connection box with standard ignitor and no exposed luminaire cabling
- Utilises MHNSA 1KW and 2KW 400V, double ended lamps, suitable to televised professional sporting events
Application:
Indoor sports halls or large stadiums and horse racing venues. Feature lighting of tall buildings and civic structures.
Sports floodlighter designed with precision optics and hot restrike options for high mast applications.
Pierlite- Arena Vision MVF 403
Features:
- Pressure die-cast aluminium housing and rear access cover with durable powder coat paint finish
- Specular anodised, high purity aluminium reflector systems with toughened glass cover for downlighting versions
- Special high temperature ceramic glass cover for uplighting versions
- Wire safety mesh combined with the glass covers
- Stainless steel clips and exposed fasteners with a galvanised and painted mounting bracket
- The compact size allows for close grouping on mast head frames
- Integrated power connection box with ignitor
- Operates MHNSA 2KW 400V lamp as standard or MHNSA 1.8KW 240V lamp as option
Application:
Outdoor stadiums, Indoor sports halls, Architectural floodlighting of buildings and civic structures
Professional floodlight luminaire designed for ease of installation, reliability, flexibility and low glare performance.

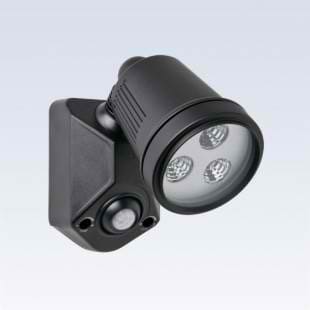

Pierlite- LED Sense 1
Features:
- Aluminium housing complete with sturdy mounting base
- High power 3W LED system, with total power consumption of 4.2W
- Power source: AC 100-240V 50Hz
- Sensor range: 5M * 140 degree
- With timer (5 sec-7min) & Lux (Sun-Moon) adjustment
- Colour temperature: 6500K Cool White
- IP rating: IP44
Application:
Residential, Security, Walkways

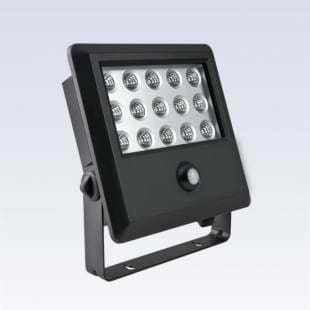

Pierlite- LED Sense 3
Features:
- Robust aluminium housing complete with trunnion mounting frame
- High power 15W LED system with a total power consumption of 25W
- Power source: AC 100-240V 50Hz
- Sensor range: 5M *140 degree
- Designed with a pre-set 3 min (off) time delay
- Colour temperature: 6500K Cool White
- IP Rating: IP65
Application:
Ideal for residential, Security and walkways
Energy Efficient LED Floodlighting

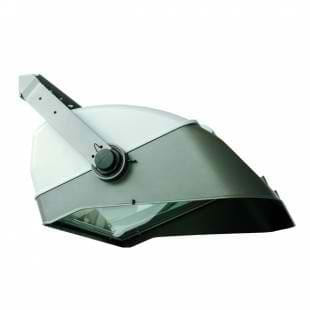

Pierlite- Olympic
Features:
- Pressure die-cast aluminium body in a stylish powder coat paint finish with heat dissipation fins for thermal control
- Rear opening panel with stainless steel latches for easy lamp access and maintenance
- Asymmetric reflector in high purity anodized and polished aluminium
- Adjustable lamp position to
- obtain four different photometric distributions
- Tempered 4mm thick glass resistant to thermal shock, has a 20° tilt angle to obtain optimum
- luminous intensity
- Tool-free maintenance operations and integral power supply disconnecting switch
- Steel mounting bracket in galvanised finish with stainless steel hardware and aiming scale
- Range of light control accessories and remote control gear sets including hot restrike option
Application:
Indoor sports halls, arenas, playing fields and race tracks.

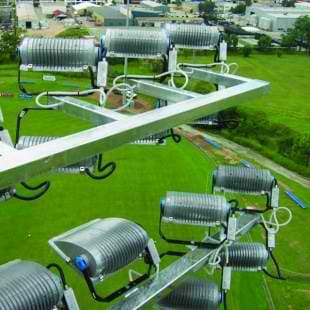

Pierlite- Optivision
Features:
- Pressure die-cast aluminium housing for durability
- Tempered glass cover is hinged for easy lamp changing
- Heat dissipation fins provide optimum thermal performance
- Protractor scale for easy aiming
- Galvanised and painted mounting bracket
- Three reflector options for design continuity
- Can be over or under slung on head frames or spars
- Ignitor within head assembly for ease of installation
Application:
Medium to large projects where light spill or glare concerns are a design criteria, such as sports fields, open area car parks or industrial sites near residential areas.
